Indicators
General information:

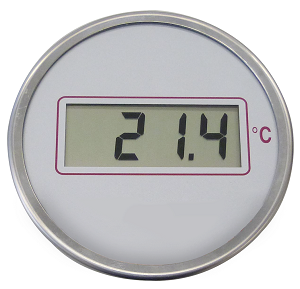

A local, battery-operated digital indicator in a flange ring shell. The measuring and reporting of local temperatures without further auxiliary energy.
Sensor:
Pt1000 DIN IEC 751 Cl. B
Operating temperature range:
-100 °C ... + 500 °C
Ambient temperature range:
-20 °C ... + 60 °C
Battery:
3,6 V lithium battery, replaceable Life cycle 3-5 years (as environmental conditions)
Indicator:
4-digit LCD-Indicator, digit height 18 mm
Accuracy :
Indicator: 0,3 % ± 1 dgt. ± sensor tolerance Tolerance Pt1000 Cl. B at 100 °C : 0,80 °C
The tolerance for Pt1000 resistance thermometers can be found in the table "Base Values and Tolerance For Resistance Thermometer" and in the data sheet "Battery-operated Indicators".
Housing:
Beaded ring cap: • Ø Nominal size 100 mm • Protection class IP 65
Material :
Stainless steel 1.4301
Process connection:
different versions are obtainable
Material of process connection:
1.4571
Application fields:
Industry, plant engineering and construction, Automotive industry
Special configurations:

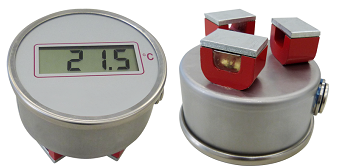

A model with magnet base for measuring wall temperature of metal containers
-100 | … | +100 °C | 0,2 |
-50 | … | +50 °C | 0,1 |
0 | … | +60 °C | 0,1 |
0 | … | +80 °C | 0,1 |
0 | … | +100 °C | 0,1 |
0 | … | +120 °C | 0,2 |
0 | … | +160 °C | 0,2 |
0 | … | +200 °C | 0,2 |
0 | … | +300 °C | 0,5 |
0 | … | +400 °C | 0,5 |
0 | … | +500 °C | 1 |
0 | … | +600 °C | 1 |
