Circular plugs and jacks
Circular plugs and jacks
- Material: chrome-plated brass
- Brass contacts, gold-plated
- Temperatures from -55 to 260 °C
- Optimal strain relief
- Elegant
The housings of the plugs and jacks are made of chrome-plated brass. The maximum operating temperature with the standard insulation PEEK is 260 °C.

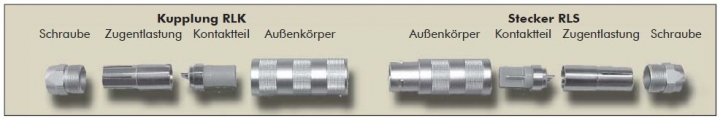

Circular connector RLS
It is the most commonly used type in our RL system. It is very often used in conjunction with the installation conduit box RLD.
| Type Size | Measure A [mm] | Measure B [mm] | Measure C [mm] | Measure D [mm] | Measure E [mm] |
|---|---|---|---|---|---|
| RLS-0 | 7 | 9 | 4,2 | 34,5 | 24,5 |
| RLK-0 | 8,9 | 9 | 4,2 | 33,5 | --- |
| RLS-1 | 9 | 11,9 | 6,2 | 42,5 | 31,5 |
| RLK-1 | 11,9 | 11,9 | 6,2 | 40,5 | --- |
| ELK-2 | 14,8 | 14,8 | 8,2 | 50 | --- |
Circular jack RLK
is suitable as a connection between cables or element and cable. It fits for all kinds of circular connectors, which are used for the installation conduit box RLD. The listed circular plugs and circular jacks are also available in the following designs:
- Waterproof design (Series E). When ordering please use the type references (see table) with the suffix “W”, e.g. RLS-1-2-W.
- Contacts made of thermocouple material: These are available for the types K (NiCr-Ni) and type L (Fe-CuNi). When ordering please use the a.m. code letters as an additive, e.g. RLS-1-2-K.
| Type Size | Measure A [mm] | Measure B [mm] | Measure C [mm] | Measure D [mm] | Measure E [mm] |
|---|---|---|---|---|---|
| RLD-0-* | 9x0,6 | 10 | 16,5 | 1,2 | 6,5 |
| RLD-1-* | 12x1 | 14 | 20,5 | 1,5 | 5 |
| RLD-2-* | 15x1 | 18 | 23,2 | 1,8 | 6 |
Fig.3
